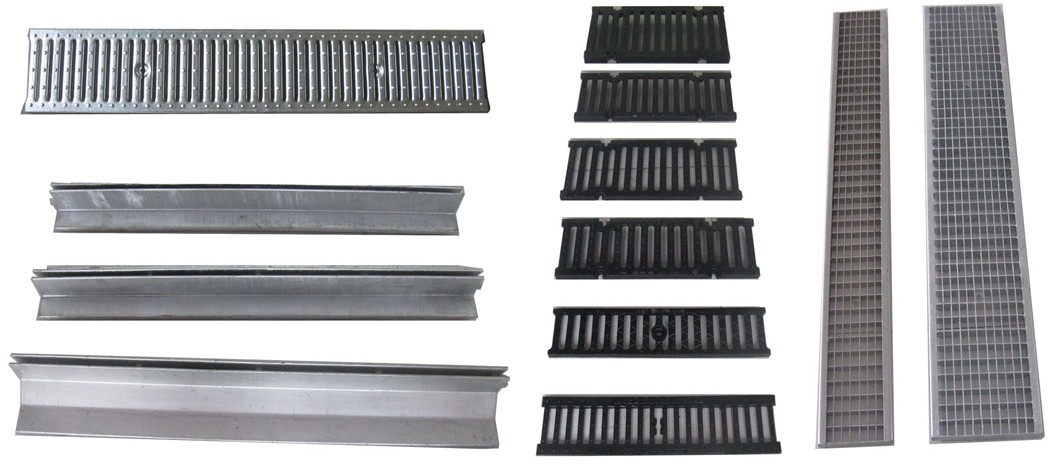

Drain Grating
Pump / Motor Body Pig Slat, Floor Cast T bolt Cast Wheel Elevator Buckets Drain Grating Manhole Cover Accessories
Detail
| Gully Grating | |||||
| Item | Frame Size mm | Clear Opening mm | Height mm | Unit Weight kg | |
| 1 | C250 gully grating | 300*300 | 170*170 | 45 | 9 |
| 2 | C250 gully grating | 400*400 | 270*270 | 45 | 15 |
| 3 | C250 gully grating | 500*500 | 370*370 | 50 | 23 |
| 4 | C250 gully grating | 550*550 | 420*420 | 50 | 27 |
| 5 | C250 gully grating | 600*600 | 470*470 | 55 | 31 |
| 6 | C250 gully grating | 700*700 | 570*570 | 60 | 48 |
| 7 | D400 gully grating | 500*500 | 370*370 | 80 | 32 |
| 8 | D400 gully grating | 550*550 | 420*420 | 80 | 38 |
| 9 | D400 gully grating | 600*600 | 500*500 | 80 | 43 |
| 10 | D400 gully grating | 700*700 | 570*570 | 80 | 58 |
| 11 | D400 gully grating | 700*700 | 600*600 | 100 | 95 |
